1. Goldhofer THP/H Introduction
❒Goldhofer has twe series one is Goldhofer THP/SL and another one is Goldhofer THP/H. The difference is that the THP/SL is 3000mm width, and the THP/H is 3600mm width. And the other designs between THP/SL and THP/H are same. The loading capacity of THP/H is much bigger than Goldhofer THP/SL, and also the THP/H can load with much more heavier toolings such as Drop deck bed, and Spacer.
2. Supro THP/H Specification
| 3660m width ST-GH modular trailer specification | ||||||||||
| Loading | Axle No. | Gross WT.(kg) | Tare WT.(kg) | Rated load./kg | No. of Tyre | Min.turning radius/mm | Out side size /mm | |||
| inside | outside | L | W | H | ||||||
| 60 tons | 2 | 7000 | 10000 | 60000 | 16 | 3135 | 8397 | 3200 | 3600 | 1175 |
| 90 tons | 3 | 105000 | 15000 | 90000 | 24 | 2694 | 8397 | 4800 | 3600 | 1175 |
| 120 tons | 4 | 139400 | 19400 | 120000 | 32 | 3355 | 9432 | 6400 | 3600 | 1175 |
| 150 tons | 5 | 175000 | 25000 | 150000 | 40 | 2012 | 7365 | 8000 | 3600 | 1175 |
| 280 tons | 6 | 210000 | 30000 | 180000 | 48 | 2696 | 8397 | 9600 | 3600 | 1175 |
| 215 tons | 7 | 244600 | 34600 | 210000 | 56 | 3355 | 9432 | 11200 | 3600 | 1175 |
| 240 tons | 8 | 278000 | 38600 | 240000 | 64 | 3355 | 9432 | 12800 | 3600 | 1175 |
| Tyre size | 235/75R17.5-16 143/141J | Rim Tyre | 6.75x17.5(10 holes) | |||||||
| Taming mode | Full wheel steering of constancy steering | Braking system | Double pipe braking system/ Double Hoot/Acting on all wheels | |||||||
| Wheelbase (mm) | 1600 | Track Front/Back | 815/2280 | |||||||
| Axle capacity | 30000 | Platform Height | 1250 +300/-300 | |||||||
3660mm Width Multi axle trailer Speed and Loading table
|
Speed (km/h) |
Loading (tons) |
|
5 |
45 |
|
10 |
35 |
|
15 |
30 |
|
20 |
27 |
|
25 |
25 |
|
30 |
23 |
|
35 |
21 |
|
40 |
20 |
|
60 |
18 |
|
80 |
17 |

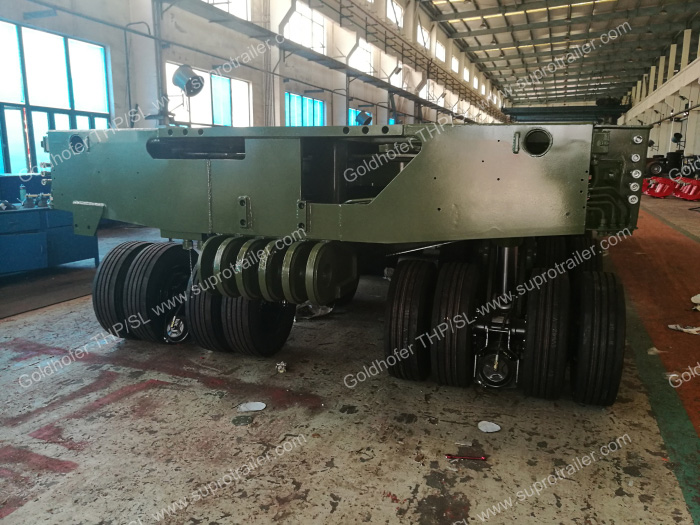

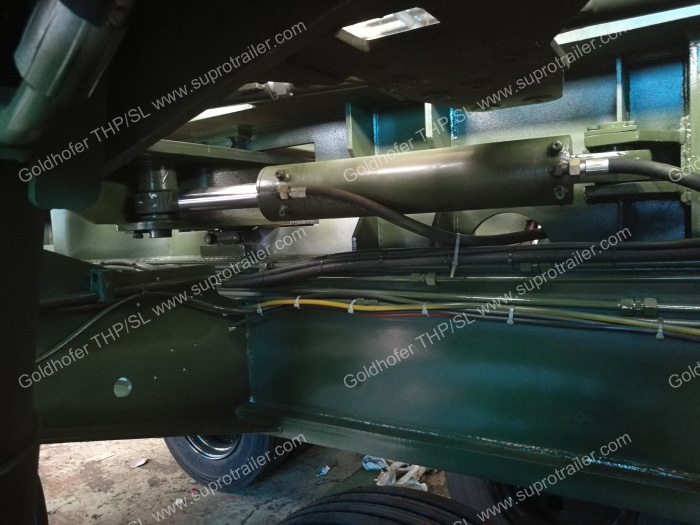

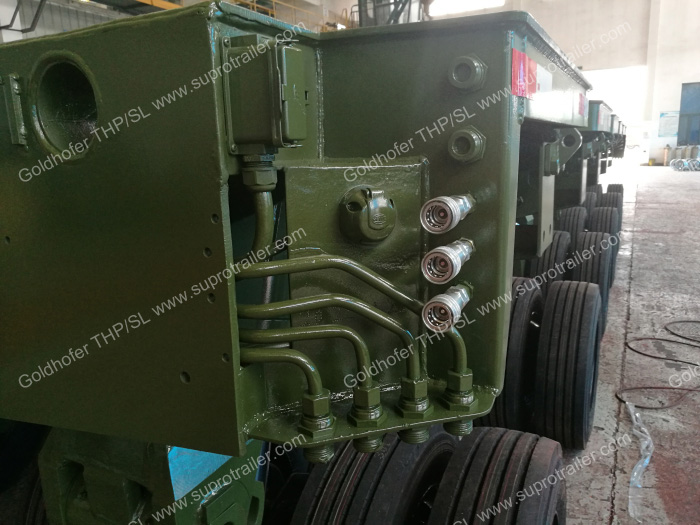

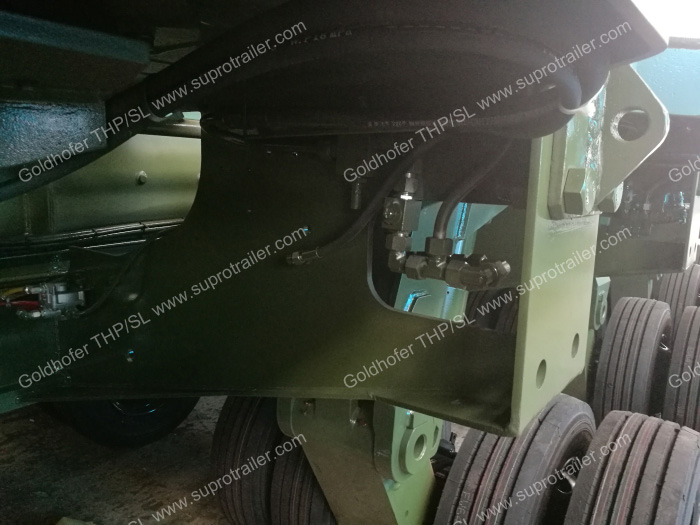

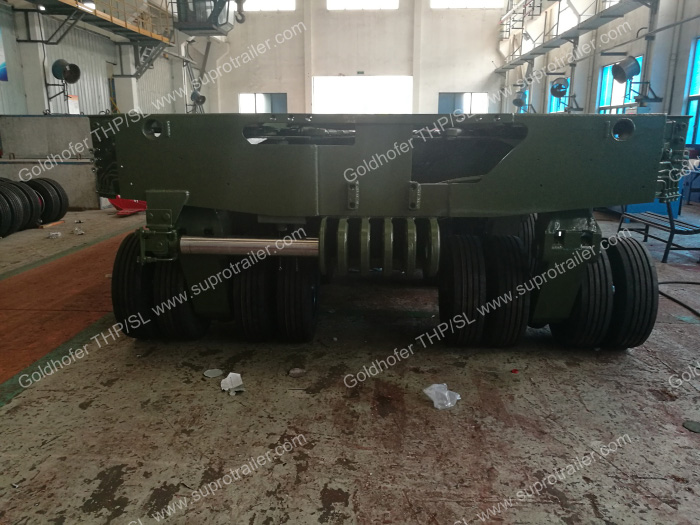

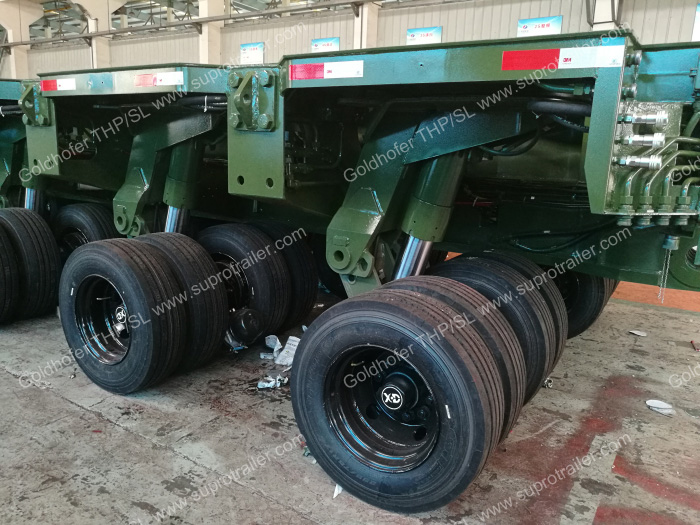

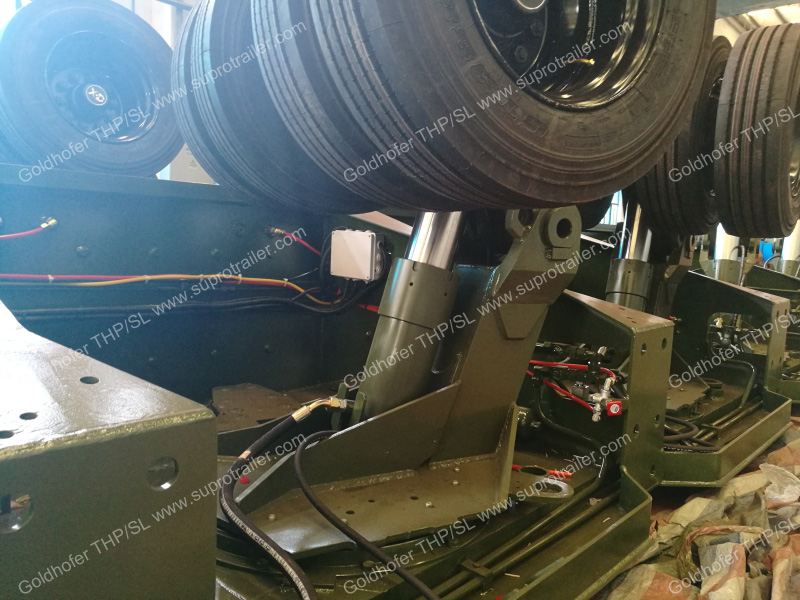

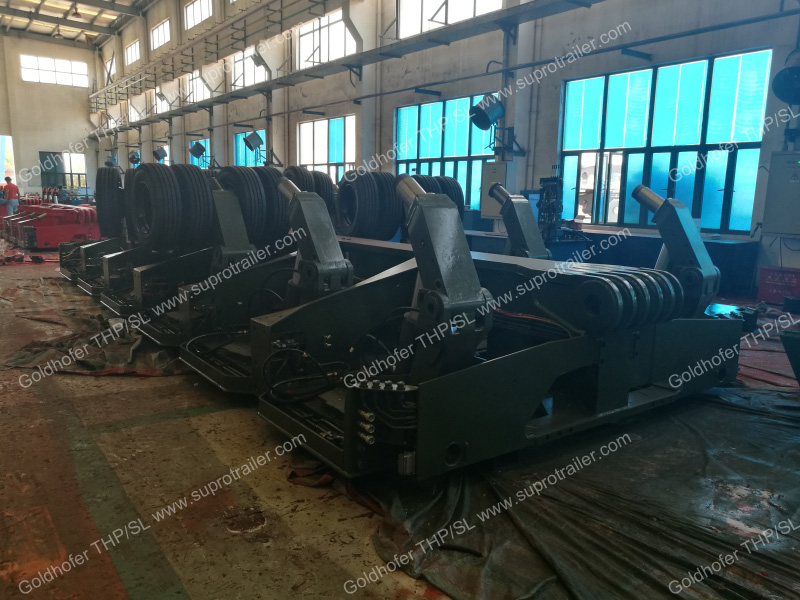

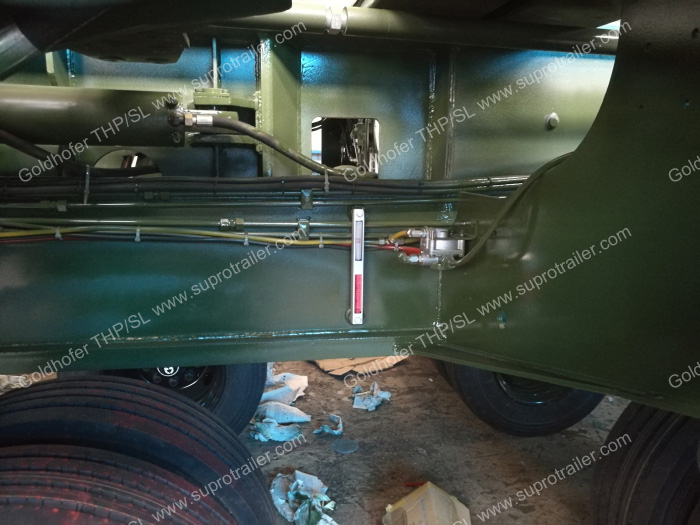

3. Supro THP/H Photos
