1. Supro THP/SL

❒Supro produce THP/SL to parallel with Goldhofer THP/SL, that says Supro THP/SL can combine with Goldhofer THP/SL and work with Goldhofer THP/SL. Not only the Goldhofer THP/SL, but also Supro can produce THP/H paralle with Goldhofer THP/H. In order to guarantee the quality standard of the Supro THP/SL, the company use overseas brands of hydraulic accessoreis such as quick connector, hydraulic pump etc. And also Supro produces independent hydraulic gooseneck to work with Goldhofer THP/SL. Supro Trailer also produce some toolings for Goldhofer THP/SL such as Drop deck bed, Turntbale, Spacer etc. We customize tooling for Goldhofer THP/SL to meet your oversize cargo transportation!

2. Goldhofer THP/SL Specification▼

Godlhofer THP/SL specification
Loading	Axle No.	Gross WT.(kg)	Tare WT.(kg)	Rated load./kg	No. of Tyre	Min.turning radius/mm		Out side size /mm
						inside	outside	L	W	H
45 tons	2	53600	8600	45000	16	450	4070	3000	2900	1175
65 tons	3	77400	12400	65000	24	1500	5800	4500	2900	1175
90 tons	4	106200	16200	90000	32	2600	7600	6000	2900	1175
110 tons	5	130000	20000	110000	40	1500	5800	7500	2900	1175
135 tons	6	158800	23800	135000	48	2000	6700	9000	2900	1175
155 tons	7	182600	27600	155000	56	2600	7600	10500	2900	1175
180 tons	8	211400	31400	180000	64	3100	8500	13000	2900	1175
Tyre size		215/75R17.5 135/135J			Rim Tyre		6.0x17.5(10 holes)
Taming mode		Full wheel steering of constancy steering			Braking system		Double pipe braking system/ Double Hoot/Acting on all wheels
Wheelbase (mm)		1500			Track Front/Back		735/1800
Axle capacity		22500			Platform Height		1175 +300/-300

3. Goldhofer THP/SL Speed and Loading table▼

Speed (km/h)	Loading (tons)
5	45
10	31
15	27
20	25
25	22
30	21
35	20
40	19
60	18
80	17

Photos of Supro THP/SL

10 axles lines Supro THP/SL with Hydrualic gooseneck and power pack▼

Supro Trailer use European brands of Hydraulic valves for the gooseneck building▼

Supro customizes the hydraulic suspension for THP/SL▼

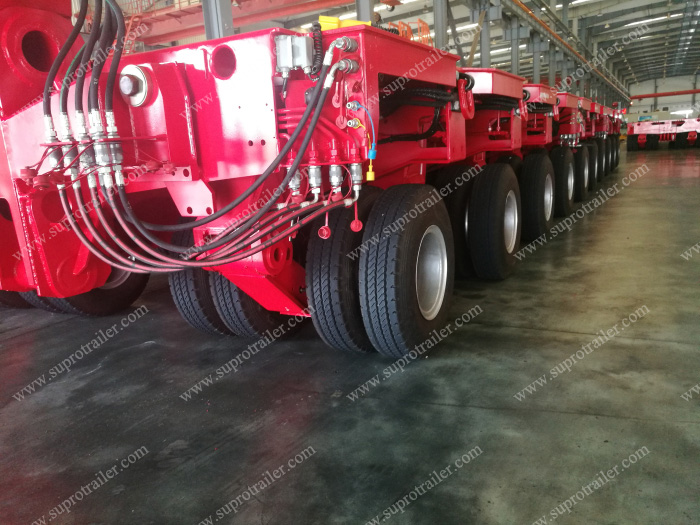

High quality standard Hydraulic accessories for Supro THP/SL ▼

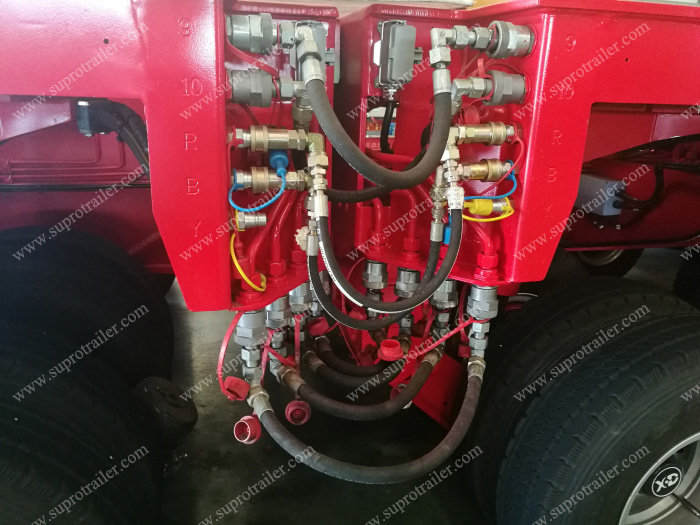

Longitudinal combination accessories ▼

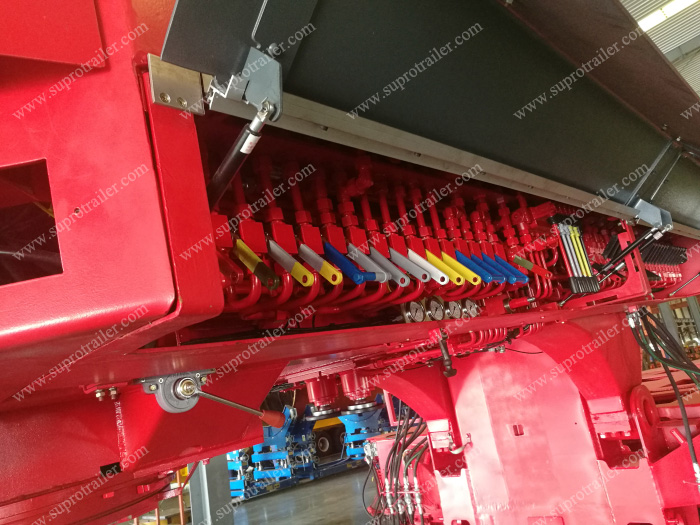

Control panel for Supro THP/SL▼
